Expansion and renovation
Rhein-Maas-Gymnasium 2025
G8-G9 extension and refurbishment of science rooms
Current: Construction site photos July 2025
Expansion and renovation
Occasion and goal
The switch from G8 to G9 will create additional space requirements for around 930 pupils.
Key data
- Addition of one storey to the administrative NW wing
- New rooms: 4 classrooms, 1 substitute classroom, 3 course rooms, 2 differentiation rooms, 1 multifunctional room, open learning center
- Renovation on the first floor: biology rooms (2 classrooms, collection, preparation) Renovation of the staff room due to the roof construction
- Barrier-free access to all floors thanks to elevator installation
- Photovoltaic system on the roof
- Timber panel construction, transparent inside and out
- Sound-absorbing rear walls
- Net floor space: Upper floor new 1,050 m², ground floor renovation 375 m²
- Gross volume: Upper floor new 5,080 m³, ground floor renovation 1,770 m³
- Preliminary measure: refurbishment of basement, completed in 2024
- Architects: Hahn Helten Planungs GmbH
- Start of execution: July 2024
- Expected completion date: June 2026
Legal basis
In 2018, the state parliament of North Rhine-Westphalia passed the 13th School Law Amendment Act and reorganized the duration of the educational courses at lower secondary level. The grammar schools in NRW were thus given the option of conducting the Abitur examination after eight or nine school years in future. In this unique decision, all eight municipal grammar schools in Aachen have opted to switch to nine years (G9).
The Department of Children, Youth and Schools (FB 45) currently assumes that around 930 additional pupils will be attending grammar schools in Aachen as a result.
All municipal grammar schools were examined from this perspective. As a first step, four grammar schools will be expanded through structural measures in order to accommodate the expected increase in the number of pupils.
Construction site photos
July 2025

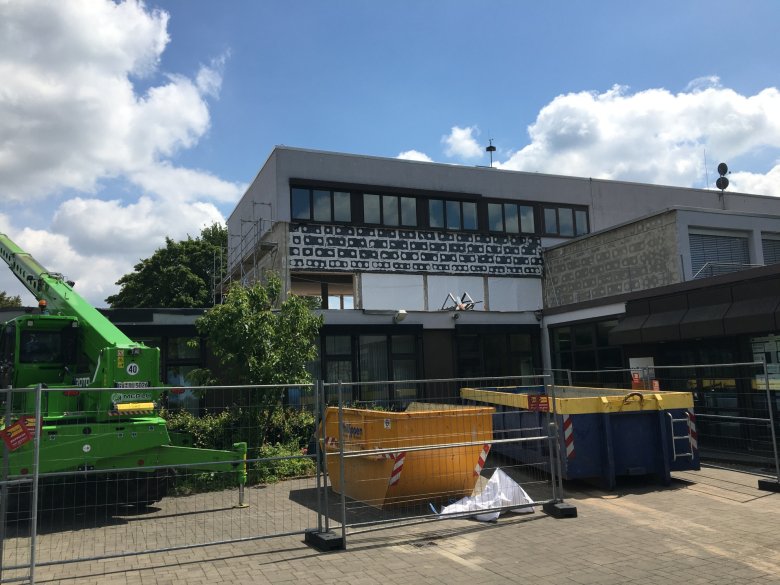

Demolition work is progressing and, after the demolition of parts of the thermal insulation composite system, the original blue tiled façade is exposed.
The emergency roof and the "demolition wounds" on the existing cubature can be seen.
The staff room is demolished.
Further demolition workMay 2025

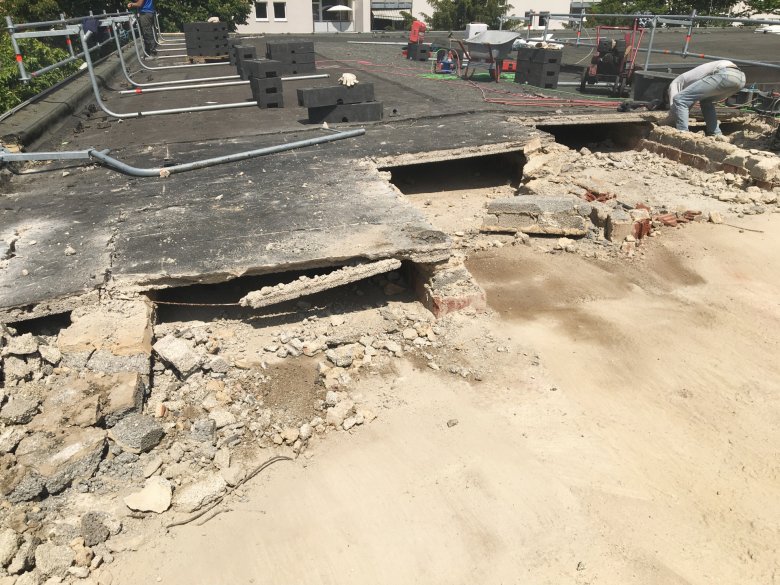

The demolition of the double roof is underway in preparation for the extension.

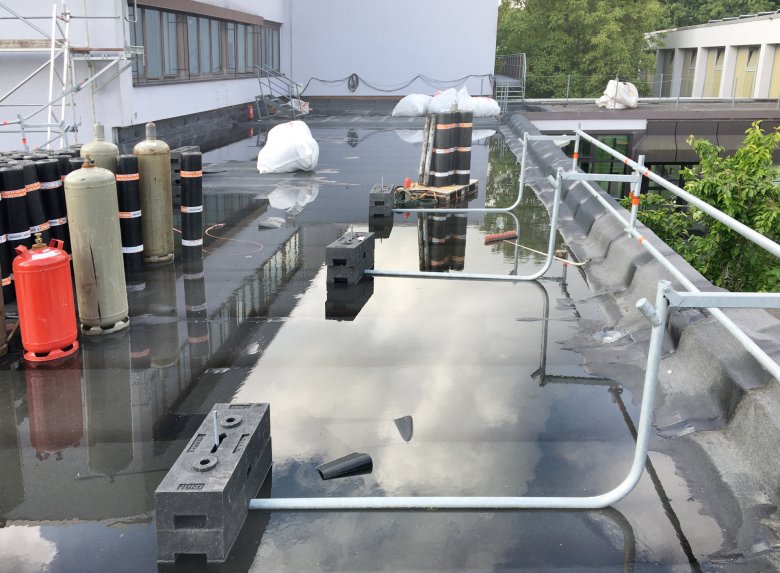

Work on the emergency sealing has begun.

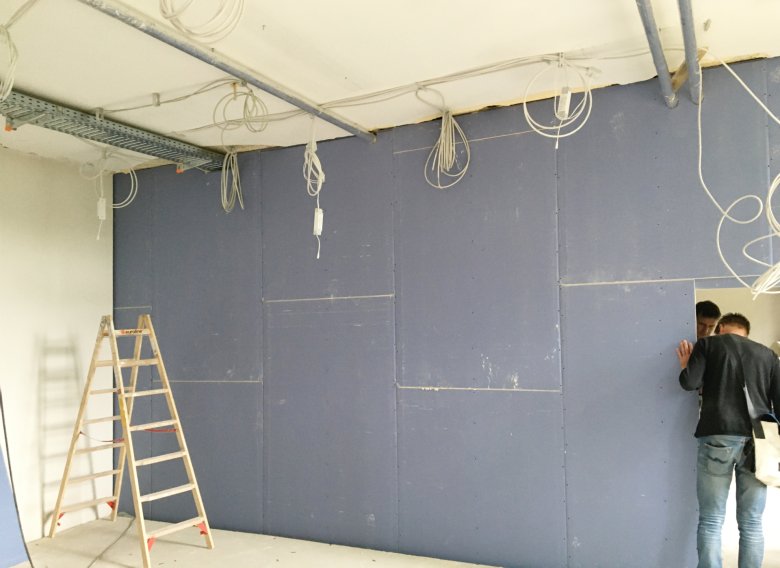

The drywall walls are in place.

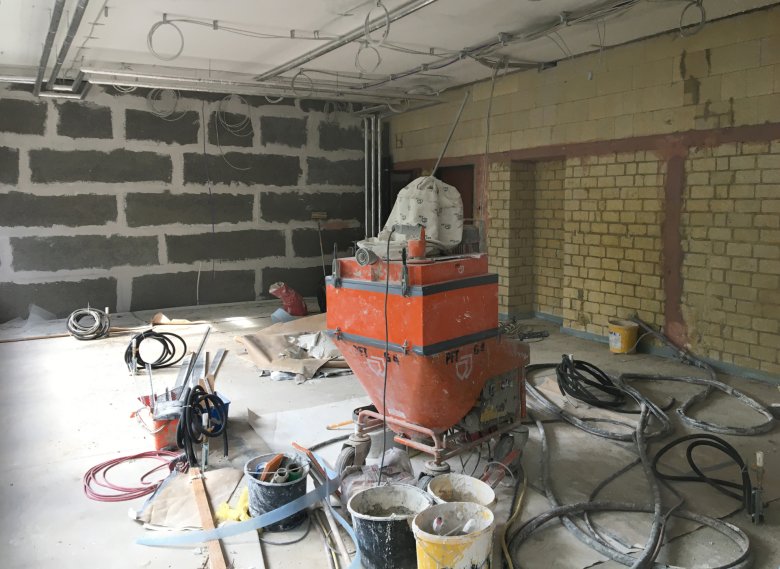

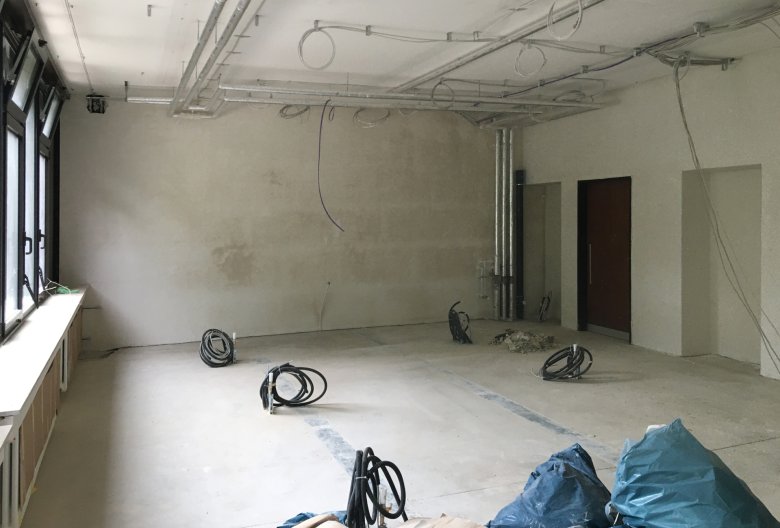

The plastering work has been completed and the basic installation has been carried out.
Once the pollutants have been removed and the plaster removed, it is replaced.

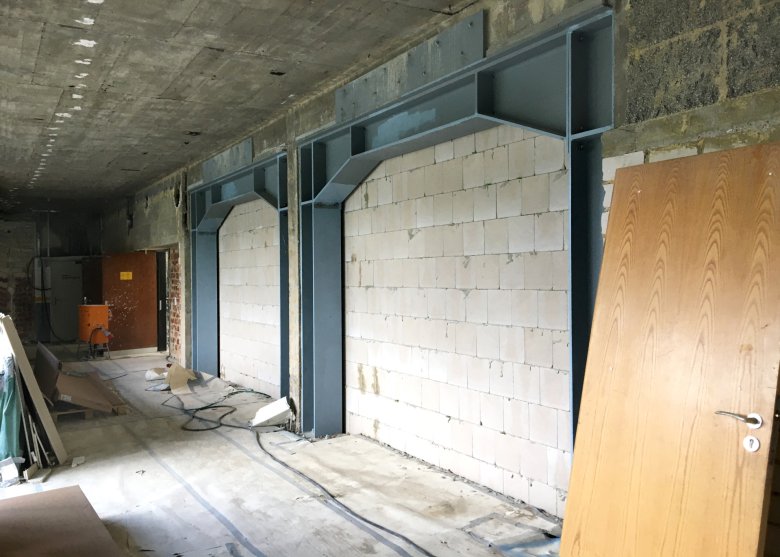

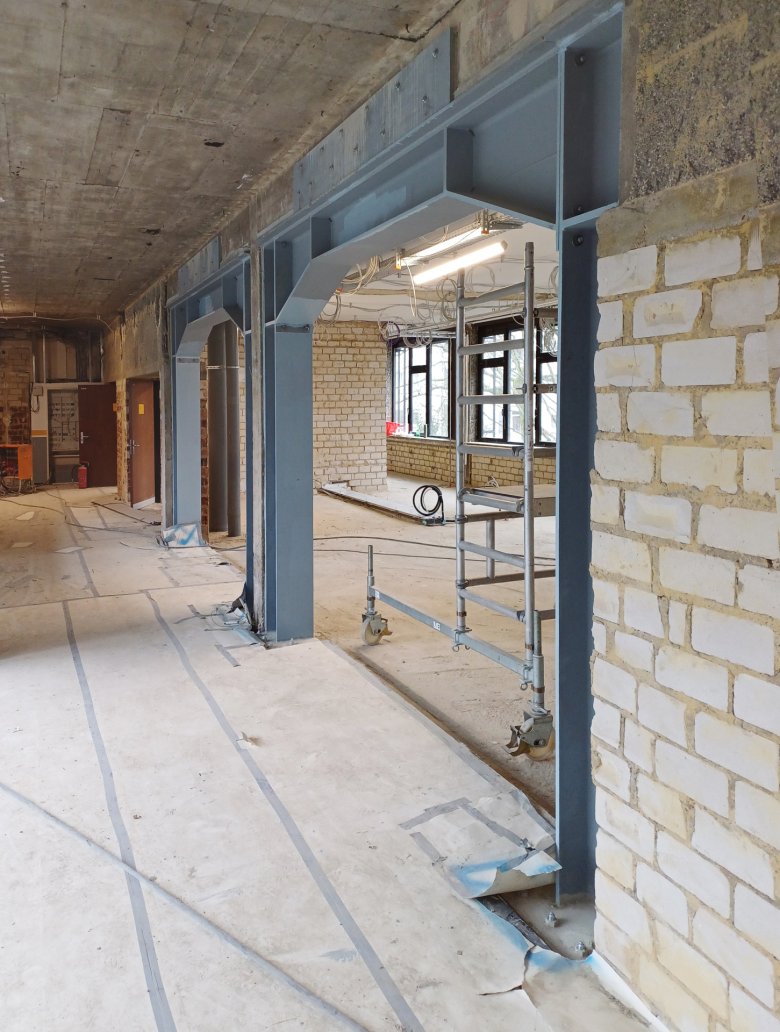

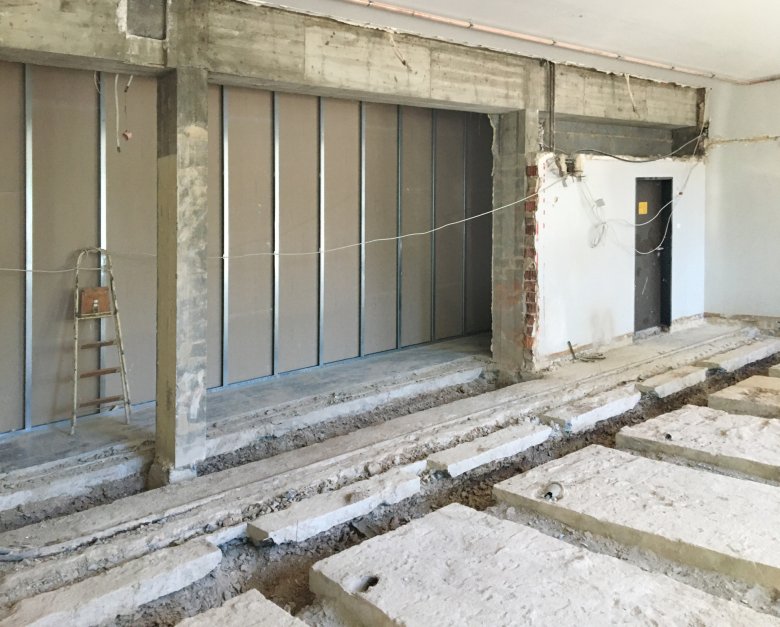

The load transfer profiles on the ground floor were installed and the masonry walls were set.January 2025
The construction sign has been erected

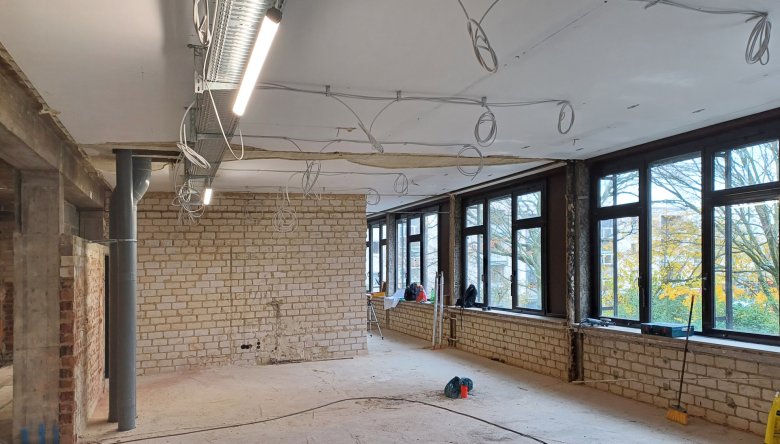

Bio room on the first floor
Work began on the renovation of the biology rooms and structural strengthening on the ground floor.December 2024
Renovation of chemical basement

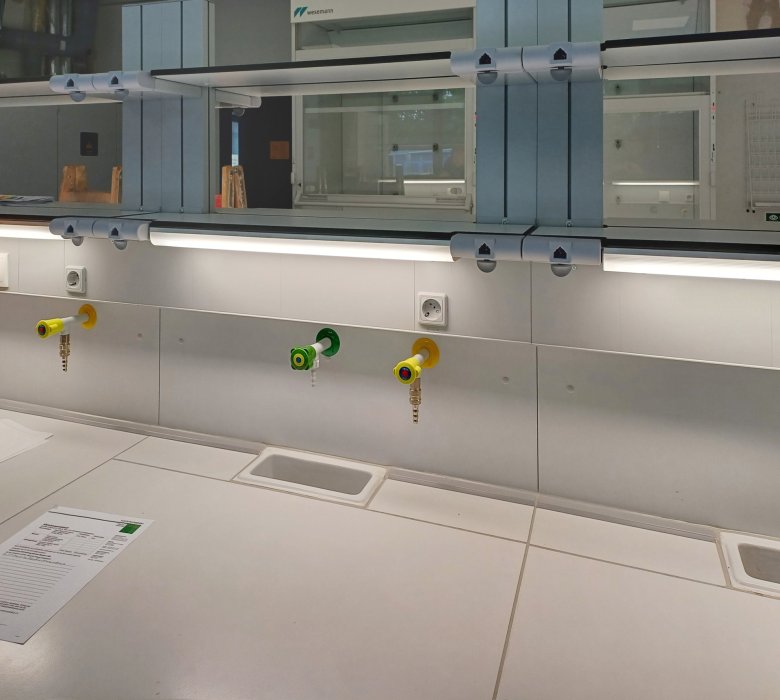

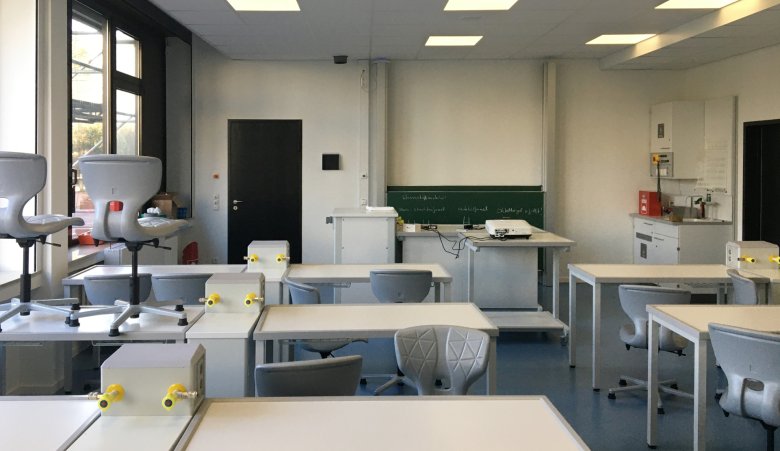

The preliminary refurbishment of the chemistry rooms in the basement has been completed.October 2023 Preliminary measures
Preliminary measures such as the gutting of the chemical rooms in the basement are underway.
Description
Design and façade
A single-storey structure of the same dimensions will be built on top of the existing administration and special classroom wing.
The extension is a timber construction. The new façade protrudes slightly above the existing building and alternates between vertical base and top formwork and horizontal tongue and groove formwork. The timber is pre-greyed.
Wood-aluminum windows form a ribbon façade with light-colored blind panels that come alive with the sculptural wood cladding. External blinds are installed and the walls are built using timber panel construction.
The existing façades are designed as bands across the entire width of the building and finished with light gray ETICS. The two areas stand out from each other due to their different design.
Floor plan and interior design
The extension is accessed from the main classroom wing. A circular corridor surrounds a large learning center, the inner courtyard and two differentiation rooms. The other rooms are oriented towards the outside.
Another differentiation room is located between the new staircase and the learning center with a view of the cafeteria.
Lehmenkühler, Christina (City of Aachen)

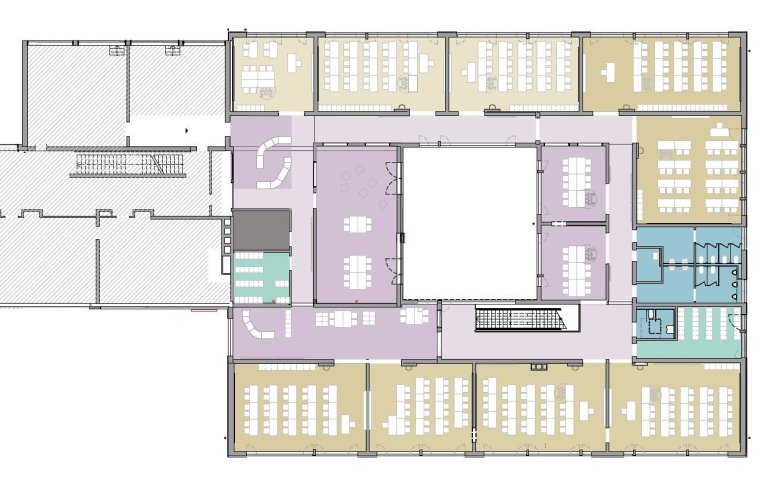

Schematic floor plan
The floor plan is divided into three fire compartments to allow for many wood-visible surfaces.
With the exception of the technical rooms, all rooms will have suspended ceilings with acoustic effectiveness. Classrooms and course rooms will be fitted with sound-absorbing wooden slat walls at the rear.
The interior perspective gives an impression of the visible wooden surfaces.
Energy concept
Sustainability is playing an increasingly important role in the City of Aachen's construction projects. The exemplary function as a public building owner, the desire for healthy buildings and economical and ecological operation over the entire service life lead to requirements that go far beyond those of an energy-efficient building.
Planning should therefore be based on the following assessment criteria:
- Ecological quality
- Economic quality
- Socio-cultural quality
- Technical quality
- Process quality
- Location features
The extension is based on the principles of future-oriented construction.

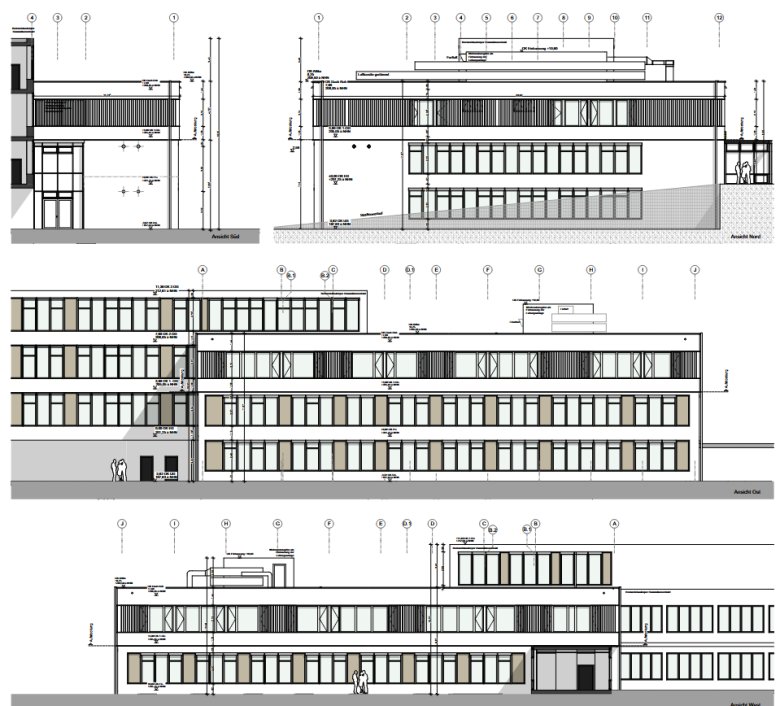

Sections and views
View
View

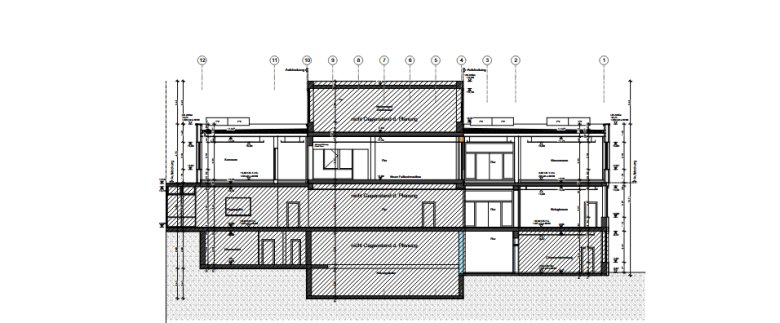

Section A-A

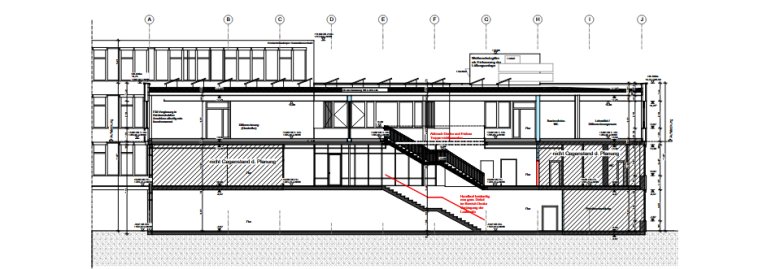

Section B-B
